McDonnell Douglas MD-87

Aircraft Features

Highlights

• One-of-a-kind Exceptional-Quality VVIP/Head of State Type Aircraft with $20 Million in Upgrades
• Size and Reliability of a BBJ/ACJ but Now at a Remarkably Affordable Price
• Will be Delivered with Fresh C-Check at Ascent Aviation Services, Arizona
• Brand New 19 Passenger VVIP Cabin Layout
• Bedroom with Shower
• New Exterior Paint Done in 2021
• Interior Refurbishment in 2021
• Equipped with In-flight Internet
• Cabin Entertainment System including 3 Large Monitors and Airshow • LED Lighting Upgrade
• Long-Range Nonstop Missions: Miami – London, London – New York, Cape Town – Sao Paulo, Dubai – Tokyo
• TCAS 7.1, RVSM, CPDLC, FANS 1/A, ADS-B Out V2
• Engines Fresh from an Engine Shop Visit
• Increased MTOW

Manufacturer/Model/Serial/Registration

• McDonnell Douglas MD-87
• MSN: 49670
• REG: N111RE

Airframe

• 28,131 Total hours
• 12,798 Total Landings
• On CAMP Maintenance Tracking

Engines

• (2) Pratt & Whitney JT8D-219 Engines
• LH Engine: 26,438 Total hours; 10,708 Total cycles
• RH Engine: 25,473 Total hours; 10,785 Total cycles
• Last Shop Visit: 84 Hours / June 2022

APU

• Honeywell GTCP-85-98DHF
• 2,020 Total APU hours

Passengers

• 19 Passenger seats with forward crew rest
• 2 Crew plus one flight deck observers’ seat

Avionics

• Dual Universal UNS1Fw Flight Management System with GPS & WAAS
• Dual Honeywell Autopilot
• Dual Honeywell SERIES-8 Air Data Computers (ADC)
• Triple Collins Navigation Radios
• Triple Collins VHF-22C Communications System
• Dual Collins 628T HF Communications System
• Honeywell HG1075 Inertial Reference Unit (IRS)
• Collins DME-42 Distance Measuring Equipment (DME)
• Collins TTR 921 Traffic Collision Avoidance System (TCAS II) with Change 7.1
• Dual Collins TDR94D Mode S Transponder
• Enhanced Ground Proximity Warning System (EGPWS)
• Honeywell Radar
• Universal CVR 120A Cockpit Voice Recorder (CVR)

Performance

• 6 Forward and 4 Aft Auxiliary PATS Fuel Tanks
• Maximum Weight – 150,000 lbs
• 9.5 hours, 4,600 NM Range
• Maximum Cruising Altitude – 37,000 ft
• Wingspan – 108 ft (32.9m)
• Length – 130 ft (39.6m)
• Height – 31 ft (9.4m)
• Cabin Dimensions – 6’ 7” (1.95m) H x 10’ 1” (3.07m) W x 85’ (25.90m) L
• Cabin Floor Area – 840 ft2 (78m2)
• Total Cabin Volume – 4,860 ft3 (137.6 m3)

Additional Equipment

• ADS-B Out
• CPDLC
• FANS 1/A
• WAAS
• RVSM Certified
• Universal 801 UniLink™
• TrueNorth Data Link Unit (DLU)
• 6 Forward and 4 Aft Auxiliary PATS Fuel Tanks
• Increased Maximum Weight to 150,000 lbs

Cabin Entertainment

• Gogo L5 Domestic Broadband + International Talk & Text
• (3) Monitors
• Full Spectrum LED Lighting Throughout

Maintenance

• Inspection Status – Last Done / Next Due
• 2C Check (48 Month) – Jul 21 / Jul 25
• 3C Check (72 Month) – Sep 19 / Sep 25
• 4C Check (96 Month) – Sep 19 / Sep 27
• 6C Check (144 Month) – Sep 19 / Sep 31
• Landing Gear Overhaul (10 Years) – Apr 2017 / Apr 2027
• HPC Corrosion AD (9 Years) – June 2022 / June 2031

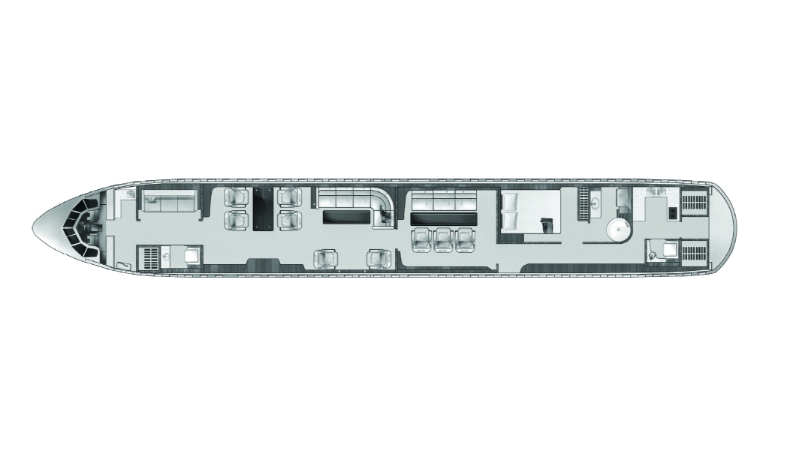

Interior

• Interior Refurbishment in 2021
• Cabin Configured for 19 passengers
• Forward Crew Rest
• Forward Crew Refreshment Centre

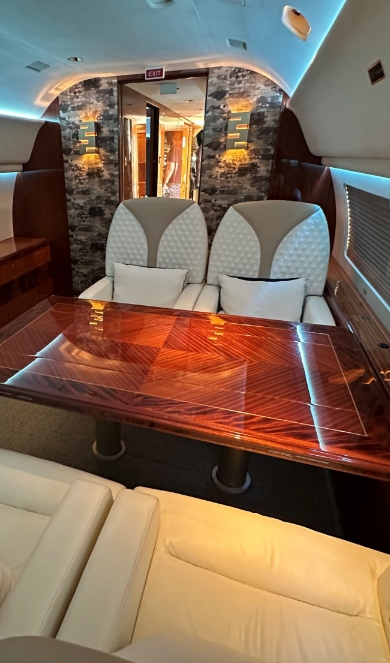

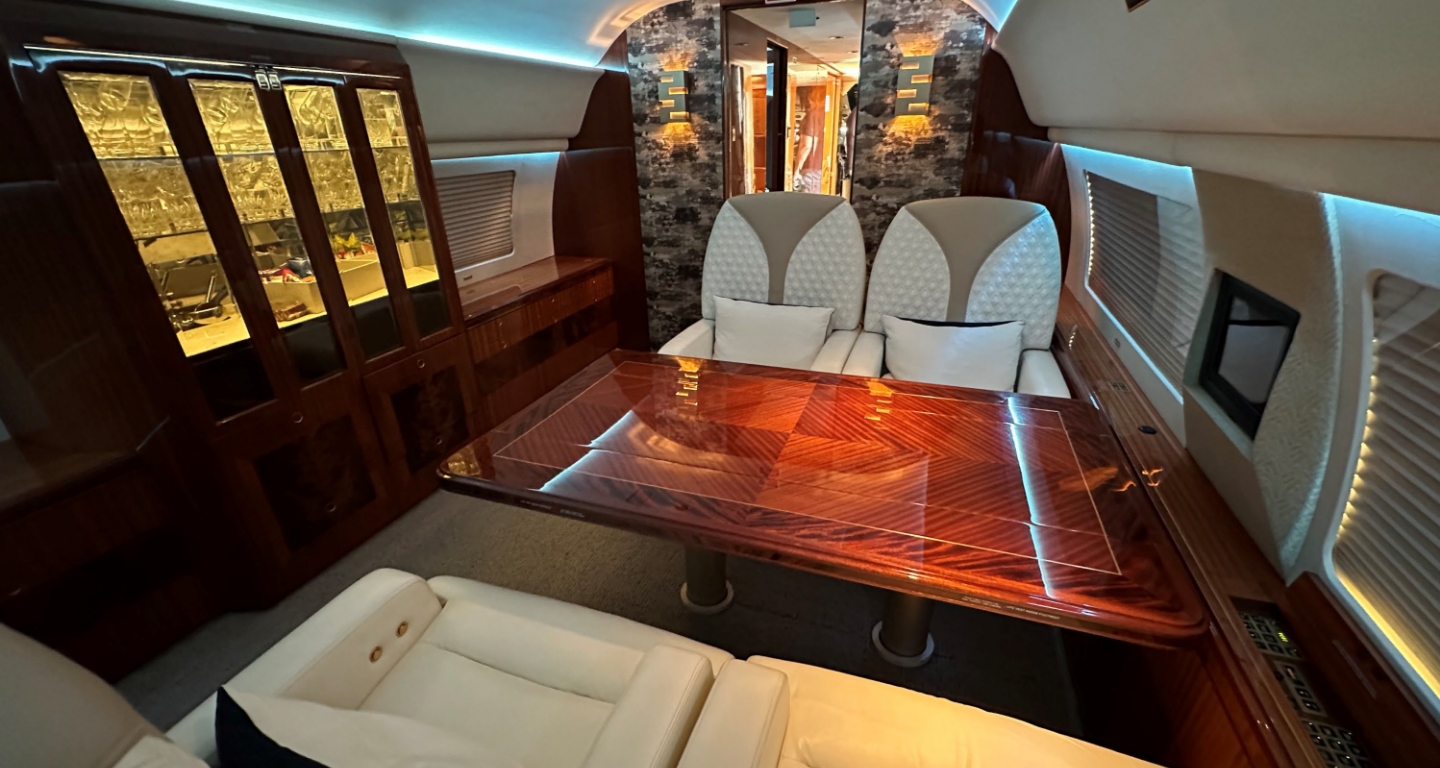

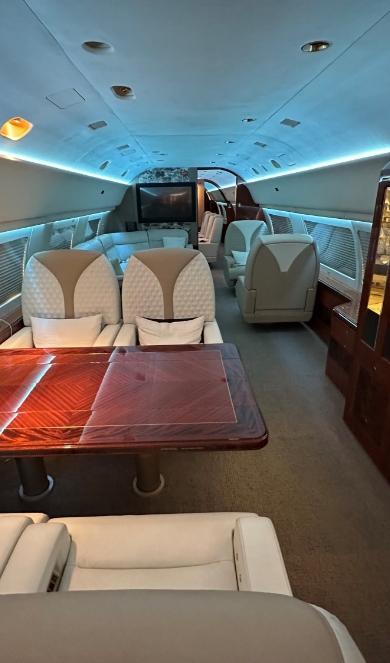

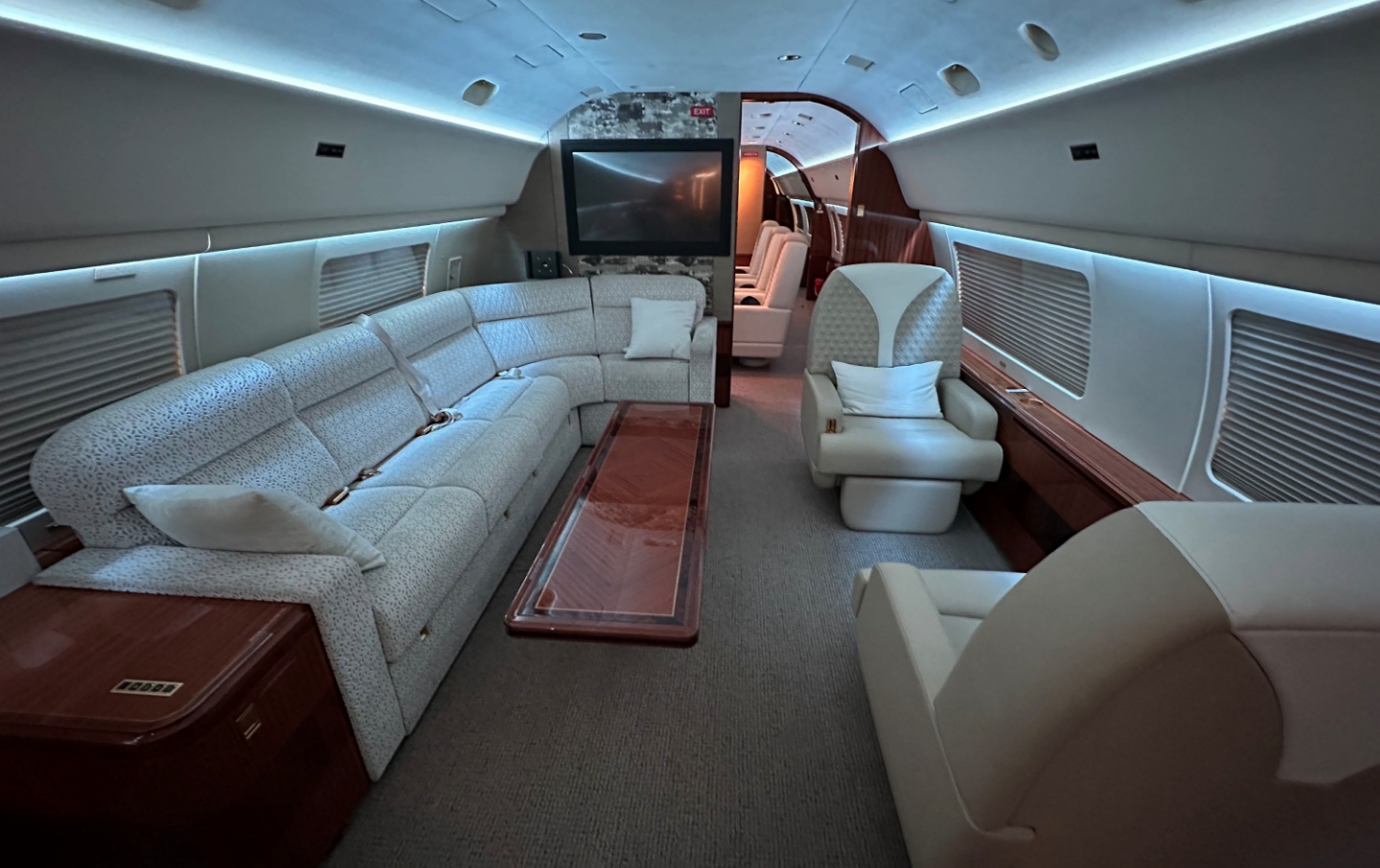

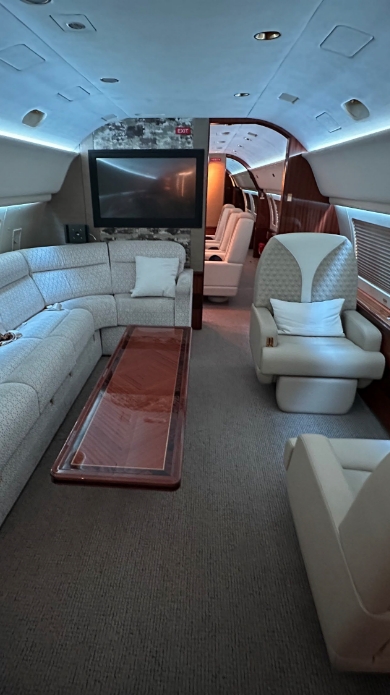

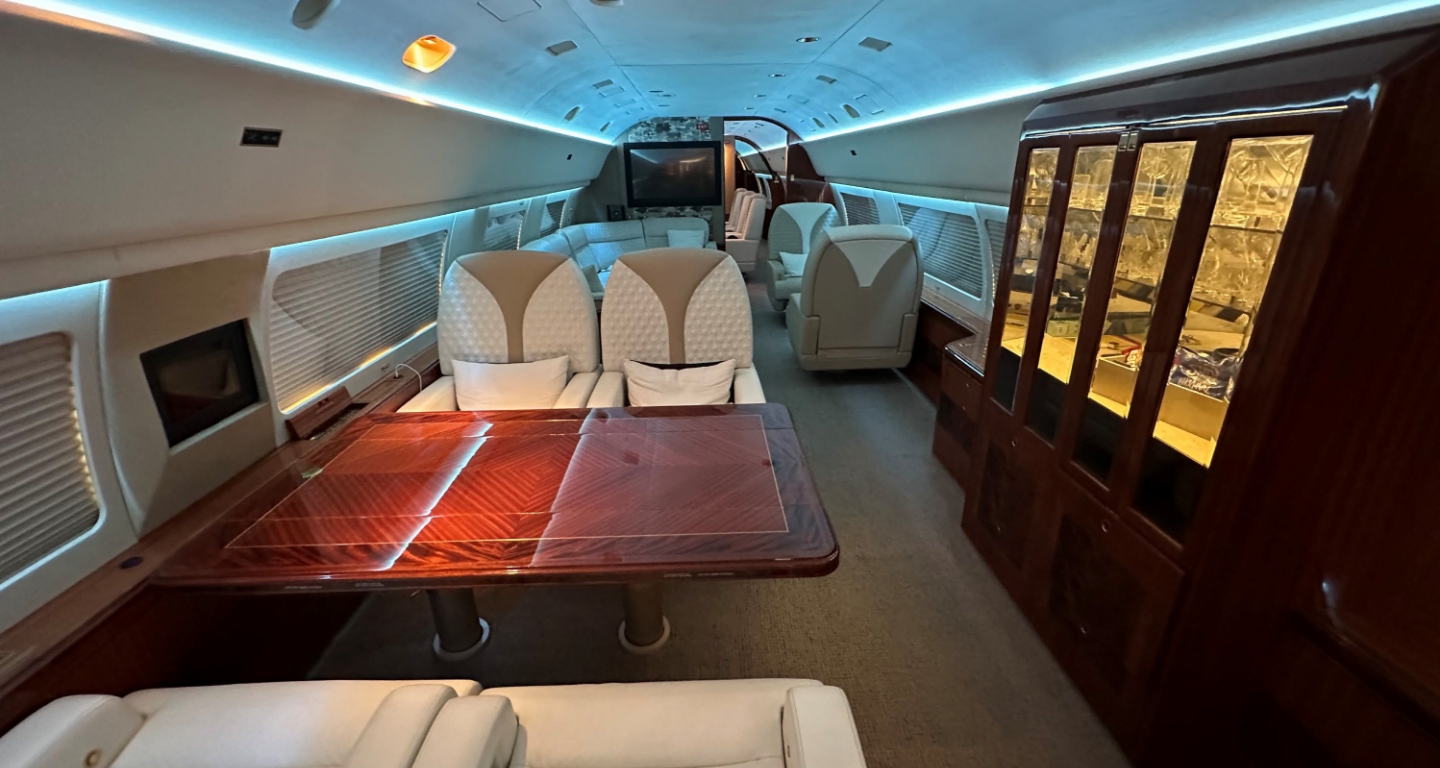

• Zone 1: 4 place conference grouping opposite storage cabinet, 2 place club seats with fold-out tables opposite 4 place divan

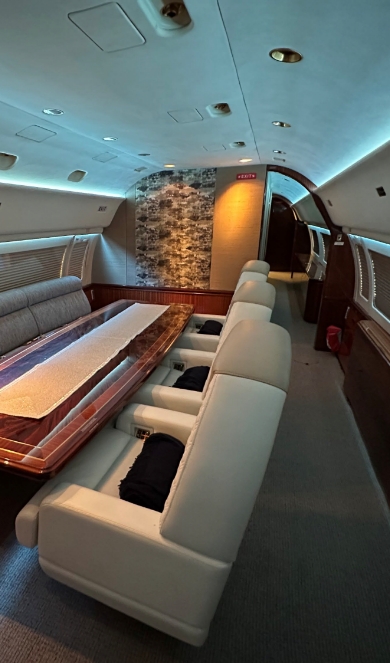

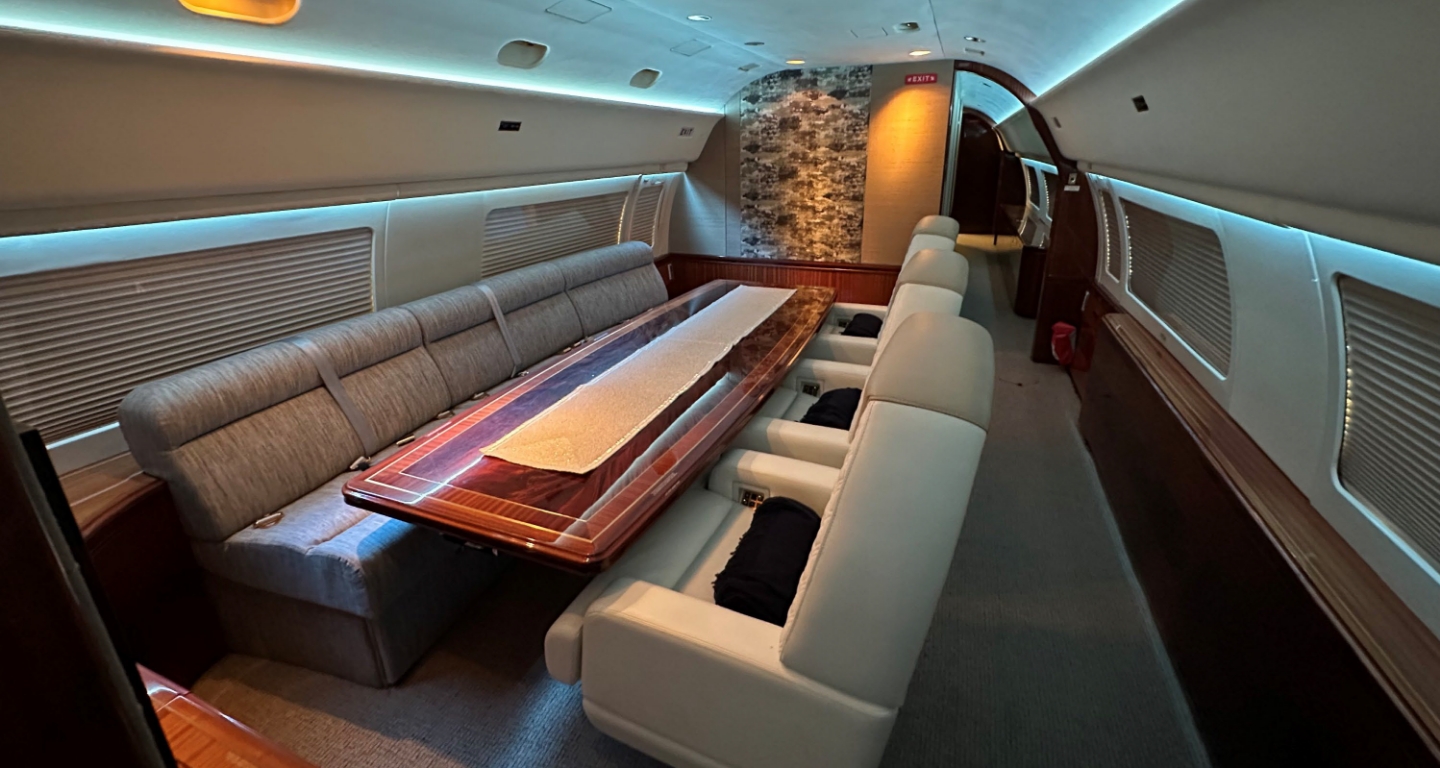

• Zone 2: 6 place conference grouping
• Zone 3: Aft Stateroom with Queen Size Bed and Private Lavatory with Shower

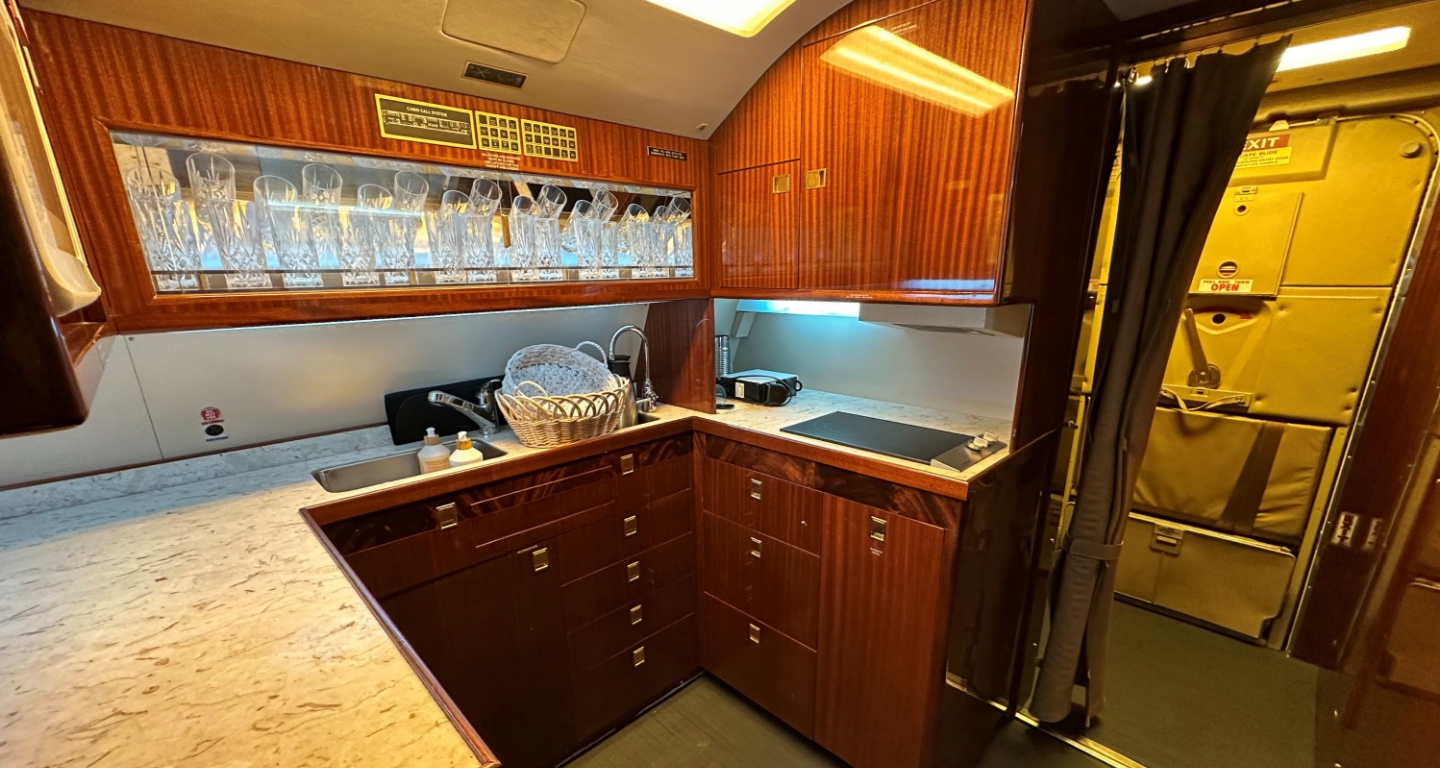

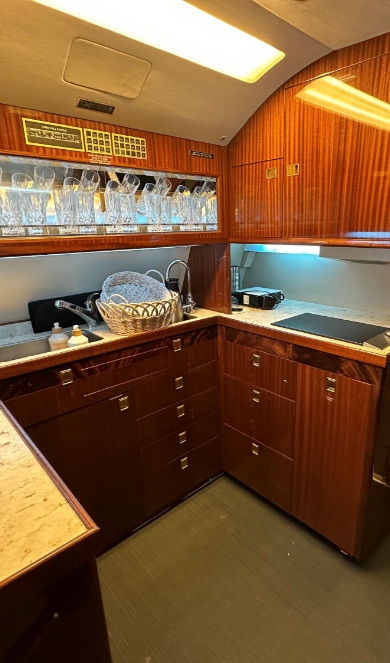

• Aft Full-Service Galley
• Forward and Aft Lavatories

Exterior

• New Exterior Paint in 2021
